OnePlus Charging Port Repair UK 2026
Direct answer: OnePlus charging port repair in the UK runs from £44.95 for the Nord CE 4 up to £129.95 for the OnePlus Open. SuperVOOC high-wattage charging can contribute to port wear over time, so this is a steady part of what we do on OnePlus. Confirm it is genuinely the port and not a dirty port or damaged cable first — diagnostics are free, and charging-port repairs carry a 9-month connector-tier guarantee.
SuperVOOC charging is the feature that sells a OnePlus — and, quietly, the reason its USB-C port ages faster than most. Pushing high wattage through the same tiny contacts, hundreds of times, takes a toll that standard charging simply does not, so a loose or intermittent port is a familiar fault on handsets two or three years in. Before you assume the worst, rule out the cheap causes: a frayed SuperVOOC cable, a dead charger, packed-in lint. Those are free to fix. Below is the exact port-repair price for every OnePlus model, how to tell a real port failure from a cable or dirt problem, and the SuperVOOC-specific bench detail. See the full OnePlus repair cost UK hub for the wider picture.
Charging port repair prices for OnePlus phones
| Model | Charging port repair (fitted) |
|---|---|
| OnePlus 13 | £74.95 |
| OnePlus 12 | £69.95 |
| OnePlus 12R | £59.95 |
| OnePlus 11 | £64.95 |
| OnePlus 10 Pro | £69.95 |
| Nord 4 | £54.95 |
| Nord 3 | £49.95 |
| Nord CE 4 | £44.95 |
| OnePlus Open | £129.95 |
Charging-port repairs carry the 9-month connector guarantee tier — shorter than our 27-month screen tier because a connector is a wearing part subjected to daily plug cycles. Diagnostics are free on standard repairs.

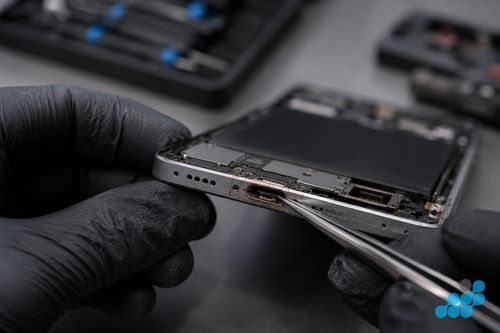

The SuperVOOC port — what is different
SuperVOOC works by negotiating a handshake between the charger, the cable and the phone, then driving a high current through the USB-C contacts at lower voltage. That means more amperage and more heat across the same small pins than an ordinary charger ever asks of them — cycle after cycle, year after year. The contacts and the solder anchoring the port to the board take that thermal load, which is why a worn or intermittent port is a routine OnePlus job on handsets a couple of years in. On most models the port is fixed straight to the main board, so putting it right is micro-soldering work — lifting the failed port and reflowing a new one — rather than something most high-street counters are equipped to attempt.
Is it really the port? How to tell
- Try a cable and charger you trust — ideally a genuine SuperVOOC set. The fast-charge handshake only fires over the matched cable, and a tired SuperVOOC lead will often still sync data while quietly dropping the charge rate to a crawl, which reads exactly like a worn port.
- Clear the recess. Compacted pocket lint is a frequent culprit; ease it out with a dry toothbrush or a puff of compressed air, and keep anything metal well away from the contacts.
- Watch how the cable sits. A lead that sags out under its own weight, only bites at one angle, or reveals bent pins points at the port itself.
- Reboot. A quick restart resets a sulking charge controller — worth a try, especially just after a software update.
Work through those first; if a cable you trust still gives an unreliable connection, the port is the most likely answer.
What the repair involves
Because the OnePlus port is usually anchored to the main board, the repair starts with getting inside — warming the rear glass to release the adhesive, which on the curved flagships has to be eased off evenly so the display edge takes no strain. From there the old port is desoldered, a replacement reflowed in its place, and the charge and data paths checked before the phone is sealed up. It is deliberate bench work, not a clip-in part, which is why each model is quoted on its own.
Port repair by post
Book at /repair/phone/oneplus, post your OnePlus tracked and insured via Royal Mail Special Delivery, and we diagnose free, confirm the exact price, carry out the repair, and return it tracked and insured. Full detail in our OnePlus repair by post guide. For related faults, see our common OnePlus faults.
On the curved-edge flagships, pad the sides so the display edge cannot take an impact; on the Open foldable, pad it flat so the hinge cannot fold in transit.
The port repair, step by step
It is worth seeing where the time goes, because that is what separates the 9-month connector tier from the 27 months a screen or battery earns. After the battery is disconnected for safety, the route splits on how the port is mounted — and on a OnePlus that distinction matters more than usual, because the SuperVOOC charge path has to be proven afterwards, not just the basic one.

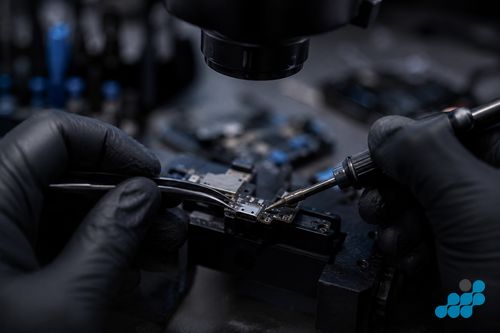

Where the port is fixed to the main board — the common case on OnePlus — the failed component is melted free and a new one reflowed onto the original pads under a microscope, the kind of temperature-controlled soldering a high-street counter rarely keeps a station for. Where a model instead routes the socket through a flex daughter-board, the fix is a tidier module swap. Either way the rebuilt charge path is then put under load and confirmed at both ordinary and full SuperVOOC rates, data transfer is checked, and only then is the phone resealed for return. The wider connector-repair picture is on our UK charging port repair cost guide.
How OnePlus port repair compares
OnePlus charging-port work sits in the upper-middle of the Android range, and the SuperVOOC factor gives it a character of its own compared with its siblings.
- Against Xiaomi. Xiaomi's budget Redmi line brings the floor lower and the port is often a simpler daughter-board swap; OnePlus's board-mounted, SuperVOOC-stressed port is more often a micro-solder job. See our Xiaomi charging port repair page.
- Against Samsung. Samsung's Galaxy port ladder runs from A-series to flagship at similar connector-tier pricing. See our Samsung repair cost hub.
The honest read: across the OnePlus range a port repair is an easy call. Set the figures above against the price of a new SuperVOOC-equipped flagship and the maths makes itself — you are spending a small fraction to keep a phone that is otherwise fine. The 9-month cover on the work is the connector tier, deliberately shorter than the 27 months a screen carries, because a port is a moving part that wears with use in a way a pane of glass does not. The cross-brand picture is on our Android repair cost hub.
Is it the port, or is it the board?
The one scenario worth flagging before you commit is a charging fault that is not the port at all. Liquid ingress can corrode the port and the charging circuitry around it, in which case a port reflow alone will not hold — the board-level damage needs a separate micro-soldering diagnostic at the 120-day tier, not the 9-month connector tier. Likewise, a phone that will not charge after a hard fall may have a cracked solder joint or a damaged charging IC rather than a worn port. This is exactly why the free diagnostic comes first: we confirm the fault is genuinely the port before quoting the port-repair price, and if the problem runs deeper we tell you plainly and weigh it against the beyond-economical-repair threshold. If water is the suspected cause, our Android water damage repair guide sets out what to expect.
The value of the diagnosis-first approach
The reason we lean so hard on the free diagnostic before any port work is that a charging fault on a OnePlus has at least four possible owners — the cable, the charger, the port, or the board — and only one of them is genuinely the port. A SuperVOOC cable that has fatigued internally still passes data but drops high-wattage charging back to a slow trickle, which reads to the owner exactly like a worn port. Equally, pocket lint packed tight enough to wedge the cable at an angle produces the same angle-dependent connection as a loose socket, yet costs nothing to clear. By working the free checks first — a known-good SuperVOOC cable and charger, a cleaned port, a soft reset — a meaningful share of reported “port” faults resolve without a repair at all. When the fault survives those checks, that is the point a port replacement or micro-solder earns its 9-month connector-tier guarantee, and not before.
Your data stays put through a OnePlus port repair
A charging-port repair is micro-solder work on the charging sub-circuit, entirely separate from the storage that holds your photos, apps and messages, so the handset comes back exactly as it went in — only charging reliably again. We still advise a recent backup as good hygiene before any repair. The free pre-repair check also confirms the fault is genuinely the worn USB-C port and not a failing SuperVOOC cell or a damaged cable dressed up as a port problem, so you pay for the work the phone actually needs rather than a guessed-at part.
Frequently asked questions
How much does a OnePlus charging port repair cost in the UK?
It runs from £44.95 (Nord CE 4) to £129.95 (OnePlus Open), fitted by post with a 9-month connector-tier guarantee. Every model's price is published in the table above.
How do I know if my OnePlus port is broken or just dirty?
Start with a charger and a SuperVOOC-matched cable you trust, and clear the recess with a dry toothbrush or compressed air (never metal). A fatigued SuperVOOC lead can still pass data while charging slowly, so the cable swap matters. If a known-good set still leaves the connection loose or angle-dependent, the port is the likely fault.
Does SuperVOOC charging wear the port faster?
It can contribute to faster contact wear than standard charging, because high-wattage charging puts more stress on the USB-C contacts. The port is not defective; it is the trade-off of high-wattage charging over hundreds of cycles.
Is the USB-C port on a OnePlus soldered to the board?
On most models, yes — it is fixed to the main board and has to be reflowed off and replaced with micro-soldering. A handful route it through a flex daughter-board, which swaps out more simply. We confirm which during the free diagnostic.
Can celltech repair a bent or broken OnePlus USB-C port?
Yes. A bent or broken port is exactly what the soldering bench is for — we lift the dead port off the board and reflow a fresh one rather than writing the phone off.
Will data be safe during a port repair?
Yes. The work stays on the charging sub-circuit and never reaches the storage chips, so everything — photos, apps, messages — comes back as it was. We still suggest backing up first as a matter of habit.
What guarantee do you give on a charging port repair?
9 months, on the connector tier. That is shorter than the 27 months a screen carries, simply because a port is a moving part that wears with every plug-in — honest cover for a wearing component.
Can I send my OnePlus for port repair by post?
Yes — it is how most OnePlus port jobs reach us. Book online, send the handset tracked and insured by Royal Mail Special Delivery, and it comes back to you the same way once the repair is done.
