DJI Drone Gimbal Repair Cost UK 2026: Motor, Calibration & Ribbon
Direct answer: DJI gimbal repair at celltech is priced by component, not as a blanket “gimbal replacement”. A gimbal calibration (software re-alignment of sound hardware) runs from £34.95, a gimbal motor replacement from £64.95, and a gimbal ribbon cable replacement from £44.95, each costed per model in the table below. A shaking or tilted camera does not always mean a full gimbal replacement — use the self-triage below to identify the correct fix before posting. Mechanical gimbal repairs carry a 27-month guarantee; board-level gimbal work carries 120 days.
The gimbal is the most fragile assembly on any DJI drone, and it is the part most likely to need attention long before the rest of the craft wears out. It carries the full mass of the camera on three tiny brushless axis motors, suspended on a flexible ribbon cable, exposed at the front of the drone with nothing between it and the world. A firm landing in long grass, a branch brushed in flight, or even weeks rattling loose in a rucksack can be enough to knock an axis off-centre, fatigue a ribbon, or throw the gimbal’s calibration out of true. The good news is that “gimbal problems” is really three separate faults, and pricing each one on its own usually costs a fraction of the full camera-gimbal assembly swap that DJI’s own service route often defaults to.
This page is the gimbal spoke of our DJI drone repair cost hub. For related work, see our DJI motor & propeller repair guide and the drone crash damage repair by post page, since gimbal faults very often arrive alongside arm and shell damage after a crash.
DJI gimbal repair prices by model
Prices are fitted, by post, including parts, labour and insured return. Gimbal motor and gimbal ribbon work carry 27 months; gimbal calibration carries 27 months where no parts are fitted but labour is guaranteed. Board-level gimbal work — where the fault traces to the gimbal driver on the main board rather than the assembly — carries 120 days. The ribbon column is marked N/A for the FPV and Avata lines, which do not carry a ribbon figure in our live price list; contact us for a quote on those.
| Model | Gimbal motor | Gimbal calibration | Gimbal ribbon |
|---|---|---|---|
| Mini 4 Pro | £89.95 | £49.95 | £59.95 |
| Mini 3 Pro | £84.95 | £44.95 | £54.95 |
| Mini 3 | £74.95 | £39.95 | £49.95 |
| Mini 2 SE | £69.95 | £34.95 | £44.95 |
| Mini 2 | £64.95 | £34.95 | £44.95 |
| DJI Air 3 | £99.95 | £54.95 | £64.95 |
| DJI Air 2S | £89.95 | £49.95 | £59.95 |
| DJI Air 2 | £84.95 | £44.95 | £54.95 |
| Mavic 3 Pro | £129.95 | £64.95 | £79.95 |
| Mavic 3 Classic | £109.95 | £59.95 | £69.95 |
| Mavic 3 | £119.95 | £59.95 | £74.95 |
| Mavic 3 Cine | £134.95 | £69.95 | £84.95 |
| Avata 2 | £89.95 | £49.95 | N/A |
| Avata | £84.95 | £44.95 | N/A |
| FPV | £89.95 | £49.95 | N/A |
Diagnostics are free on standard gimbal work. If your exact model is not shown, contact us for a quote — we cover around 2,467 device models across the catalogue, and this table is a representative slice, not the ceiling.
Understanding DJI gimbal components
To price a gimbal repair correctly you first have to know which component has actually failed, because the three are very different in parts cost and labour. Here is what each one does and how it fails.
Gimbal motor

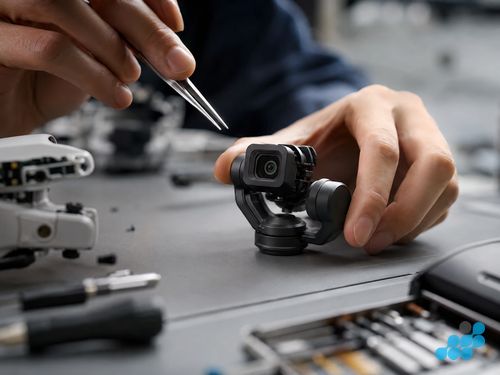

The gimbal is stabilised across three axes (pan, tilt and roll), and each axis is driven by its own small brushless motor. A motor can seize after an impact, stutter if its bearings have taken a shock, or be knocked permanently off-centre so the axis can no longer hold the camera level. The symptom is usually mechanical — an axis that will not move, a camera that droops under its own weight, or a loud continuous shake that does not respond to calibration. Motor replacement means detaching the assembly, desoldering the failed motor’s phase wires, seating a new motor and re-tuning the axis through DJI’s software.
Gimbal calibration
Calibration is a software procedure, not a parts swap. Over time — and especially after a knock, a firmware update, or simply many flights — the gimbal’s axis references drift, producing a tilted horizon, a slow creep, or a calibration error flagged in the app. If the hardware is mechanically sound, a bench calibration through DJI’s own calibration routine for the model restores the references and clears the error. This is why a careful diagnosis matters: a drone whose only fault is drift should be a £34.95 calibration, not a £129.95 motor.
Gimbal ribbon cable

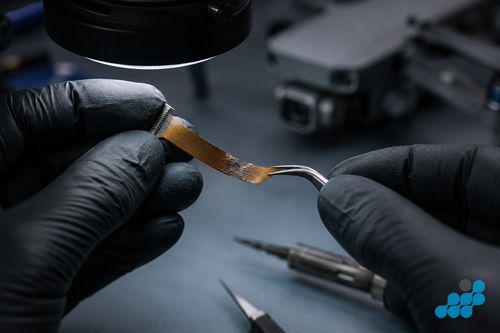

The ribbon is the flexible printed circuit that carries power and data between the gimbal motors, the camera sensor and the main body, routing through the moving axes. It fatigues with repeated flexing and tears on impact, producing a gimbal error message, intermittent camera feed, or a complete black screen while the drone itself still flies. Ribbon replacement is fiddly but precise work: the assembly is opened, the damaged flex is removed, a new ribbon is rerouted without pinching, and the connections are reseated. The ribbon carries no figure on the FPV and Avata lines — contact us for a quote on those.
Common DJI gimbal symptoms
- Shaking or vibrating footage — the classic sign. Could be a motor off-centre, a torn ribbon affecting feedback, or — if mild — drift that calibration alone will resolve.
- Camera stuck in a fixed position — an axis motor has seized or its ribbon is torn; the gimbal cannot drive that axis.
- Gimbal calibration error in the app — the firmware is refusing to complete calibration. Often a software/drift fault, but if it persists after a bench calibration, a motor or ribbon is the likely culprit.
- Horizon tilt that does not correct — the roll axis reference has drifted or the roll motor is weak. Try calibration first; if it returns, suspect the motor.
- No gimbal response at all after a crash — a torn ribbon or a motor knocked off its mount. The whole assembly needs bench inspection.
Self-triage before sending it in
Before you post the drone, a couple of home checks can sharpen the diagnosis and sometimes avoid a repair entirely. Attempt the gimbal auto-calibration in DJI’s official app for your model — if it completes and clears the error, you are done. Inspect the gimbal axes for visible debris, a trapped hair or a blade of grass jamming an axis; a careful clean has fixed many a “broken” gimbal. If you can see the ribbon, check for any visible tear or kink. If none of that resolves it, the fault is almost certainly a motor or ribbon, and that is work for the bench.
If you fly after a suspected gimbal knock without checking, you risk turning a calibration-only fault into a motor failure as the overloaded axis fights the obstruction — so it is worth pausing and triaging rather than sending it back up. Either way, our free diagnostic confirms which of the three it is before you commit to anything.
What the gimbal repair actually involves
On the bench, the gimbal assembly is detached from the drone body and inspected under magnification. For a motor replacement, the failed axis motor is desoldered at its three phase connections, the new motor is seated and screwed to the gimbal fork, and the assembly is re-mounted. For a ribbon replacement, the old flex is carefully peeled out of its channel and the new ribbon rerouted without stressing the solder pads at either end. In both cases the work is only half-finished at the mechanical stage: the gimbal is then run through DJI’s calibration routine for the model to restore the axis references, before a live function test confirms the horizon is level, the pan/tilt/roll axes track correctly under movement, and the camera feed is clean end-to-end. Skipping that calibration step is the single most common reason a third-party gimbal repair produces footage that “works” but never quite holds the horizon.
Send your DJI in for gimbal repair
Book at /repair/drone/dji, remove the propellers and the LiPo flight battery, and pack the body in a foam-lined box — cushioning the gimbal especially well, since a loose gimbal in transit is how some perfectly repairable drones arrive with secondary damage. Lithium-polymer batteries are restricted items under Royal Mail and Parcelforce rules, so post the battery separately to your carrier’s LiPo guidance. Our posting guide covers the full packing routine, and the wider DJI repair economics are on the DJI repair cost hub. See our genuine vs OEM-grade parts guide for how we source gimbal motors and ribbons.
Is a DJI gimbal repair worth it?
Almost always — the gimbal is the single most repairable high-value assembly on the drone, and a £34.95 calibration or £64.95 motor is a fraction of either a full camera-gimbal assembly swap or a replacement craft. The exception is a compound crash where the gimbal, shell and motor are all damaged and the combined total approaches the drone’s second-hand value; we diagnose free and weigh that honestly before you spend anything. A gimbal fault on its own, on a craft that still flies, is one of the highest-value repairs we do.
Frequently asked questions
How much does DJI gimbal repair cost in the UK?
By component: a gimbal calibration is from £34.95, a gimbal motor replacement from £64.95, and a gimbal ribbon replacement from £44.95, each priced per model in the table above. The exact figure depends on which component has actually failed, which our free diagnostic confirms.
What causes DJI gimbal shaking?
Usually an axis motor knocked off-centre, a torn ribbon affecting motor feedback, or — if mild — calibration drift. Attempt the app’s auto-calibration first; if the shake persists, suspect the motor or ribbon and book a free diagnostic.
Can DJI gimbal damage be fixed without replacing the whole unit?
Yes, in most cases. We triage to the specific failed component — motor, ribbon or calibration — and quote only for what is broken, which is usually far cheaper than the full camera-gimbal assembly swap that DJI’s own service often defaults to.
What is a DJI gimbal ribbon cable and why does it fail?
It is the flexible printed circuit that carries power and data through the moving gimbal axes. It fatigues with repeated flexing and tears on impact, producing a gimbal error, intermittent camera feed, or a black screen. Replacement runs from £44.95 on the Mini range.
Does celltech recalibrate the gimbal after replacement?
Yes. Every motor and ribbon replacement finishes with a full bench calibration through DJI’s own routine for the model and a live function test — this step is what separates a proper repair from one that holds a tilted horizon.
My DJI mini shows a gimbal calibration error — does it need replacing?
Not necessarily. A calibration error is often drift or a software fault that a bench calibration clears for around £34.95–£49.95. If the error returns after calibration, a motor or ribbon is the likely cause — we confirm which before you commit.
